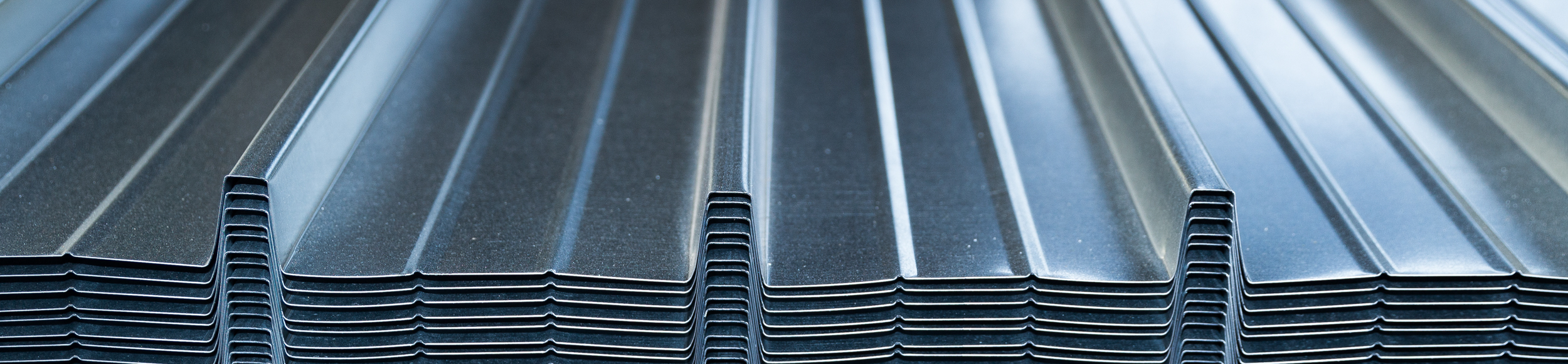

CORRUGATED STEEL SHEET • SICIM

CORRUGATED STEEL SHEETS FOR ROOFING

SECTION PROPERTIES


Spessore / thickness	mm.		0,60	0,70	0,80	1,00
Peso / weight	Kg/m²		6,43	7,50	8,58	10,72
	Kg/ml	1000	4,71	5,50	6,28	7,85
		1250	5,88	6,86	7,85	9,81
J cm⁴/m			14,92	17,40	19,89	24,81
W cm³/m			5,06	5,91	6,75	8,44
J cm⁴/m			13,80	16,40	19,01	24,17
W cm³/m			4,34	5,19	6,06	7,83

SECTION PROPERTIES - CARACTERISTIQUES DU PROFIL - EIGENSCHAFTEN DES QUERSCHNITTES

MAXIMUM LOAD UNIFORMILY DISTRIBUTED IN Kg/m² ≤ 1/200


WHEELBASE IN MT	INTERASSE IN MT	INTERASSE IN MT	INTERASSE IN MT	INTERASSE IN MT	INTERASSE IN MT	INTERASSE IN MT	INTERASSE IN MT	INTERASSE IN MT	INTERASSE IN MT	INTERASSE IN MT	INTERASSE IN MT	INTERASSE IN MT	INTERASSE IN MT	INTERASSE IN MT	INTERASSE IN MT
Spessore / thickness	mm.	1,00	1,20	1,40	1,60	1,80	2,00	2,20	2,40	2,60	2,80	3,00	3,20	3,40	3,60
	0,60							121	102	87	75	65
		587	408	300	229	181	147	114	88	70	56
	0,70							141	119	101	87	76	67	60
		685	476	350	268	211	171	132	103	81	65	53
	0,80							162	136	116	100	87	76	68
		783	544	400	306	242	196	152	117	92	73	60	50
	1,00							202	170	145	125	109	96	85	75
		979	680	499	382	302	245	189	145	114	91	74	61	52


WHEELBASE IN MT	INTERASSE IN MT	INTERASSE IN MT	INTERASSE IN MT	INTERASSE IN MT	INTERASSE IN MT	INTERASSE IN MT	INTERASSE IN MT	INTERASSE IN MT	INTERASSE IN MT	INTERASSE IN MT	INTERASSE IN MT	INTERASSE IN MT	INTERASSE IN MT	INTERASSE IN MT	INTERASSE IN MT
Spessore / thickness	mm.	1,00	1,20	1,40	1,60	1,80	2,00	2,20	2,40	2,60	2,80	3,00	3,20	3,40	3,60
	0,60
		673	432	317	243	192	170	128	108	92	79	76
	0,70													65
		785	522	383	293	232	200	155	130	111	96	85	73	64
	0,80													76
		910	610	448	343	271	225	181	152	130	112	103	86	74
	1,00													98	87
		1140	784	576	441	348	295	233	196	167	144	125	110	95	80

CHARGE UNIFORMEMENT REPARTIE EN Kg/m2 - MAXIMUM LOAD UNIFORMLY IN Kg/m2 - GLEICHMASSIG VERTEILTE BELASTUNG IN Kg/m2

GRADES
LENGTHS
THICKNESS
STANDARD PACKAGING
TRANSPORT PRECAUTIONS

Our corrugated steel sheet is made of galvanized steel and pre-painted steel (one sided or two sided prepainted). Steel grade S 250 GD Structural steels

Lenghts range from 1,50 mt to 12,00 mt with tolerances ± 5 mm

Thickness range from 0.50 mm to 1.00 mm with tolerances according to EN 10143

The standard packaging includes cross straps and pieces of wood. Non-standard packaging can be developed according to customer’s request. Weight of standard packed unit is 2 tons

To avoid oxidation or white rust on corrugated sheets, it is necessary to comply with certain provisions for transportation and storage, such as: - The material must always travel and be stored away from rain, snow, fog and humidity. - The stowing time in packages of galvanized steel must be reduced to the minimum required. - To avoid condensation, which is the main cause of rust, if the material is packed in polyethylene wrapped packages, it is necessary to open or place them in conditions of maximum ventilation as soon as they are delivered. - The galvanized or pre-painted steel must be stowed away from sources of ferrous dust, chemical fumes and soot due to the combustion of diesel which is the cause of an early corrosion process.

Download *.pdf version

CORRUGATED STEEL SHEETS FOR WALLS

SECTION PROPERTIES


Spessore / thickness	mm.		0,60	0,70	0,80	1,00
Peso / weight	Kg/m²		6,43	7,50	8,58	10,72
	Kg/m	1000	4,71	5,50	6,28	7,85
		1250	5,88	6,86	7,85	9,81
J cm⁴/m			10,78	13,38	16,13	21,88
W cm³/m			4,34	5,19	6,06	7,83
J cm⁴/m			13,80	16,40	19,01	24,17
W cm³/m			4,34	5,19	6,06	7,83

SECTION PROPERTIES - CARACTERISTIQUES DU PROFIL - EIGENSCHAFTEN DES QUERSCHNITTES

MAXIMUM LOAD UNIFORMILY DISTRIBUTED IN Kg/m2 ≤ 1/200


WHEELBASE IN MT	INTERASSE IN MT	INTERASSE IN MT	INTERASSE IN MT	INTERASSE IN MT	INTERASSE IN MT	INTERASSE IN MT	INTERASSE IN MT	INTERASSE IN MT	INTERASSE IN MT	INTERASSE IN MT	INTERASSE IN MT	INTERASSE IN MT	INTERASSE IN MT	INTERASSE IN MT	INTERASSE IN MT
Spessore / thickness	mm.	1	1,20	1,40	1,60	1,80	2,00	2,20	2,40	2,60	2,80	3,00	3,20	3,40	3,60
	0,60							121	102	87	75	65
		587	408	300	229	181	147	114	88	70	56
	0,70							141	119	101	87	76	67	60
		685	476	350	268	211	171	132	103	81	65	53
	0,80							162	136	116	100	87	76	68
		783	544	400	306	242	196	152	117	92	73	60	50
	1,00							202	170	145	125	109	96	85	75
		979	680	499	382	302	245	189	145	114	91	74	61	52


WHEELBASE IN MT	INTERASSE IN MT	INTERASSE IN MT	INTERASSE IN MT	INTERASSE IN MT	INTERASSE IN MT	INTERASSE IN MT	INTERASSE IN MT	INTERASSE IN MT	INTERASSE IN MT	INTERASSE IN MT	INTERASSE IN MT	INTERASSE IN MT	INTERASSE IN MT	INTERASSE IN MT	INTERASSE IN MT
Spessore / thickness	mm.	1	1,20	1,40	1,60	1,80	2,00	2,20	2,40	2,60	2,80	3,00	3,20	3,40	3,60
	0,6
		673	432	317	243	192	170	128	108	92	79	76
	0,70													65
		785	522	383	293	232	200	155	130	111	96	85	73	64
	0,80													76
		910	610	448	343	271	225	181	152	130	112	103	86	74
	1,00													98	87
		1140	784	576	441	348	295	233	196	167	144	125	110	95	80

CHARGE UNIFORMEMENT REPARTIE EN Kg/m2 - MAXIMUM LOAD UNIFORMLY IN Kg/m2 - GLEICHMASSIG VERTEILTE BELASTUNG IN Kg/m2

GRADES
LENGTHS
THICKNESS
STANDARD PACKAGING
TRANSPORT PRECAUTIONS

Our corrugated steel sheet is made of galvanized steel and pre-painted steel (one sided or two sided prepainted). Steel grade S 250 GD Structural steels

Lenghts range from 1,50 mt to 12,00 mt with tolerances ± 5 mm

Thickness range from 0.50 mm to 1.00 mm with tolerances according to EN 10143

The standard packaging includes cross straps and pieces of wood. Non-standard packaging can be developed according to customer’s request. Weight of standard packed unit is 2 tons.

To avoid oxidation or white rust on corrugated sheets, it is necessary to comply with certain provisions for transportation and storage, such as: - The material must always travel and be stored away from rain, snow, fog and humidity. - The stowing time in packages of galvanized steel must be reduced to the minimum required. - To avoid condensation, which is the main cause of rust, if the material is packed in polyethylene wrapped packages, it is necessary to open or place them in conditions of maximum ventilation as soon as they are delivered. - The galvanized or pre-painted steel must be stowed away from sources of ferrous dust, chemical fumes and soot due to the combustion of diesel which is the cause of an early corrosion process.
